Products

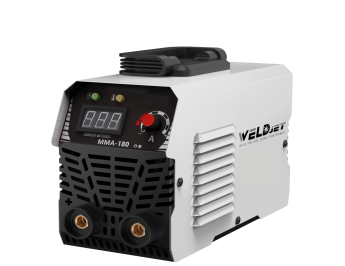

IronMMA-120/140/160/180/200A

IronMMA-120/140/160/180/200A

MMA arc welding machine, portable with handle and belt. Light weight, easy to carry and move. Perfect for DIY, house repair, farm and rach repair, etc... Robust case and IP21S protection class allow to work in a harsh environment.
  • Functional Features
  • Specification parameters
  • External dimensions
  • Features:

    1.  Compact and portable, easy to carry and use.

    2.  Digital display for more precise control the welding amperage.

    3.  Thermal overload protection helps prevent machine damage.

    4.  Built-in Anti stick function, enhance your welding experience significantly.

    5.  Easily arc ignition and less spatter.


    Support customizing:

    1.  One phase 220V or 110V/220V or 127V/220V dual voltage input.

    2.  Digital display or LCD display.

    3.  Lift TIG welding function could be added as your request.

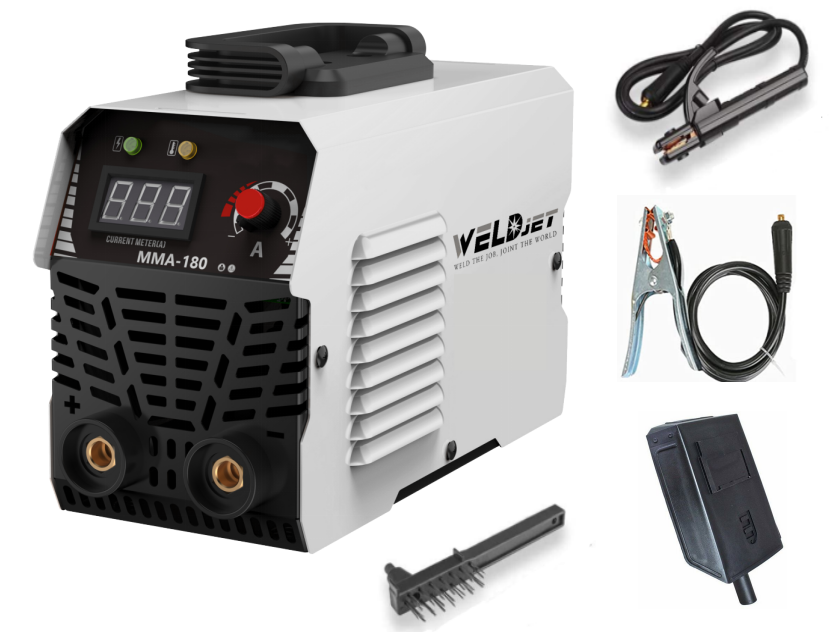

    Standard package include:

    1. Power source with power cable, 1pc.

    2. 200A earth clamp with 1.2M cable, 1pc.

    3. 200A electrode holder with 1.8M cable, 1pc.

    4. Mask and brush, 1 set.

    5. User manual, 1pc.

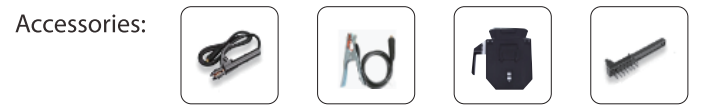

    Additional accessories for option:

    1. Welding electrode E6013/ E7018, diameter: 1.6mm/ 2.0mm/ 2.5mm/ 3.2mm /4.0mm/ 5.0mm

    2. Welding gloves.

    3. Welding goggles.


    Technical data
    IronMMA-120
    IronMMA-140
    IronMMA-160
    IronMMA-180
    IronMMA-200
    Input Voltage
    1ph~220V 50/60Hz
    1ph~220V 50/60Hz
    1ph~220V 50/60Hz
    1ph~220V 50/60Hz
    1ph~220V 50/60Hz
    Rated input power (KVA)
    4.8
    5.8
    6.8
    7.9
    9.2
    Rated input current (A)
    21.8
    26.4
    30.9
    35.9
    41.8
    Output current range (A)
    20-120
    20-140
    20-160
    20-180
    20-200
    Open circuit voltage (V)
    60
    62
    62
    62
    62
    Rated duty cycle @ 25℃
    50%
    50%
    50%
    40%
    40%
    Electrode diameter (mm)
    1.6~3.2
    1.6~3.2
    1.6~4.0
    1.6~4.0
    1.6~5.0
    Protection Class
    IP21S
    IP21S
    IP21S
    IP21S
    IP21S
    Insulation Class
    FF
    F
    F
    F
    N.W./ G.W (kg)
    4/ 4.4
    4.4/ 4.8
    4.6/ 5
    4.9/ 5.3
    5.3/ 5.8
    Package dimension (mm)
    310x 200x 190
    310x 200x 190
    310x 200x 190
    310x 200x 190
    340x 200x 205
    Welding material
    Stainless Steel, Alloy Steel, Carbon Steel, Cast Iron
    ApplicationShipbuilding, Farm and Ranch, Construction and Fabrication, Repair and Maintenance, etc..
